鑄鋁-斜齒輪減速機
Features
- Sizes: 060-080-100-125-140-150-160
- Available versions: B - fitted for motor coupling, IB - with input shaft, CB - with compact motor, PB - fitted for motor coupling with flexible joint
- Cases with feet, flange or universal
- Power up to 90 kW
- Gears with shaved or ground profile
- Gearing with 3 reduction stages
- Gleason spiral bevel gear pairs with run-in profile, mounted as second reduction stage for a higher resistance
- Reduction ratios between 5,7 and 187,24
- Torque max 13.000 Nm and admissible radial loads max 65000 N
- Cases in G200 grey cast iron for high strength and optimized with FEM analysis
- Excellent mechanical strength
- Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88
- Painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843
- Accessories: torque arm, output flange, output shaft, shrink disk, backstop device, assembly/disassembly kit
H-系列齒輪組被設計為可承受繁重的工作, 并且特別適用于徑向負載的工作。 H-系列包括通用模組，這個齒輪組可用在鑄鐵(機座030 到140)或鑄鋁(機座A30 到 A60)。
產品特性
- 型號: A30-A40-A50-A60

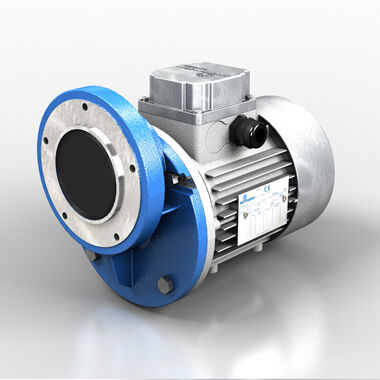

- 可用版本: HA-適用于電動機聯軸節, IHA-自帶輸入軸, CHA-自帶緊湊型電動機
- 功率達到4.8KW
- 經過合格的車銑或研磨曲線加工的齒輪
- 齒輪有1,2,3 個減速段
- 減速比在1.3和353.98之前
- 最大扭矩為500Nm, 可承受的最大徑向負荷為8000N
- 箱子為鑄鋁合金壓鑄,提供腳座,法蘭或通用安裝方式
- 具有卓越的機械強度以及最輕的重量
- 負荷能力是由ISO6336測算,并且通過AGMA2001-B88認證
-
按照DIN1843標準，用RAL5010號藍色環氧聚酯粉噴涂。
