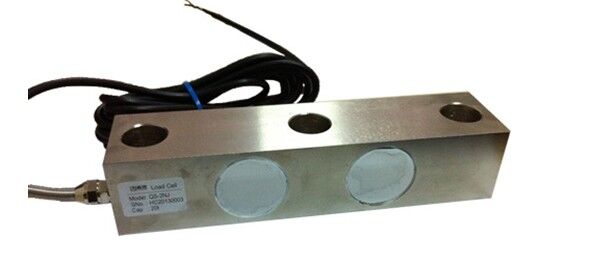

| 干粉砂漿罐計量稱重傳感器（型號：YHQS-1） | ||||||||||||||||||||||||||||||||||||||||
|
| 額定載荷Rated Load | 20t |
| 額定輸出Rated Output | 2.0000±0.001MV/V |
| 綜合誤差Total Error | ±0.02%F.S |
| 蠕變Creep(30minutes) | ±0.02%F.S |
| 推薦工作電壓Recommended Excitation Voltage | 5V～18V(AC or DC) |
| 最大工作電壓Maximum Excitation Voltage | 24V(AC or DC) |
| 零點平衡Zero Balance | ±1%F.S |
| 輸入阻抗Input Impedance | 775±5Ω |
| 輸出阻抗Output Impedance | 700±2Ω |
| 絕緣阻抗Insulation Impedance | ≥5000MΩ |
| 安全過載率Safe Overload | 150%F.S |
| 極限過載率Ultimate Overload | 200%F.S |
| 工作溫度范圍Operating Temperature Range | (-30～+70)℃ |
| 溫度補償范圍Compensated Temperature Range | (-20～+60)℃ |
| 輸出溫度影響Temperature Effect On Load | ±0.02%F.S/10℃ |
| 零點溫度影響Temperature Effect On Zero | ±0.02%F.S/10℃ |
| 材質Construction | 合金鋼Alloy Steel 鋁合金Aluminium |
| 防護等級Protection Class | IP68&IP67 |
| 引用標準Citation | GB/T7551-2008/OIML R60 |
| 接線方式Mode of Connection |
輸入+:紅 Input+Red 輸入-:綠 Input-:GReen 輸出+:綠 Output+:Yellow 輸出-:白 Output-:White |
